Outdoor exhibitions
KUBIK WYSTAWIENNICZY
– – – – – R E G I S T E R E D D E S I G N – – – – –

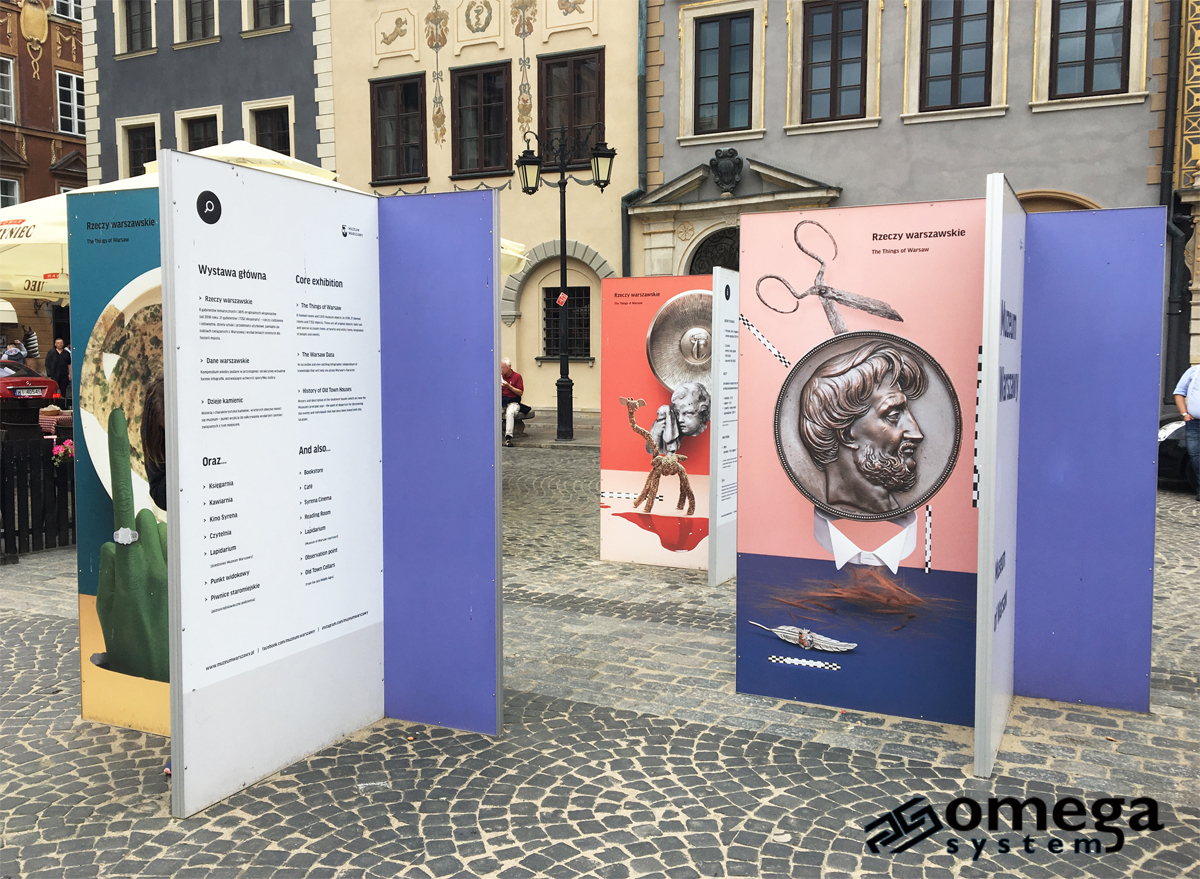

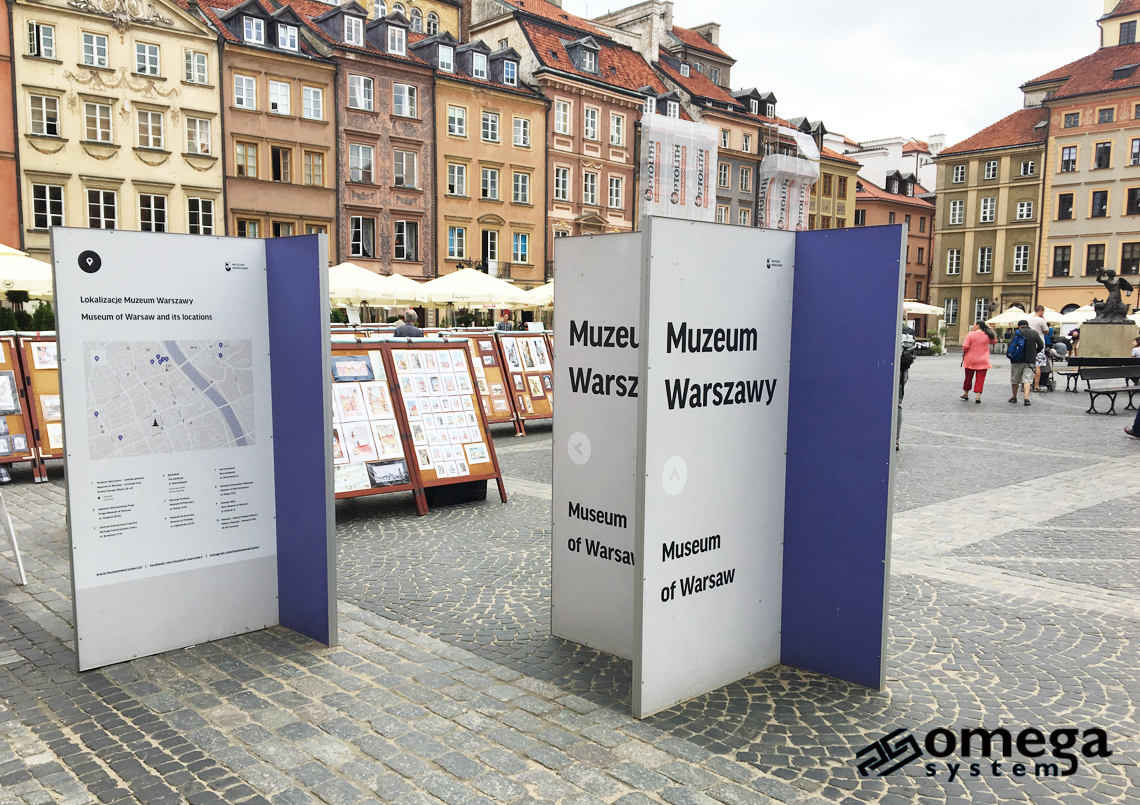

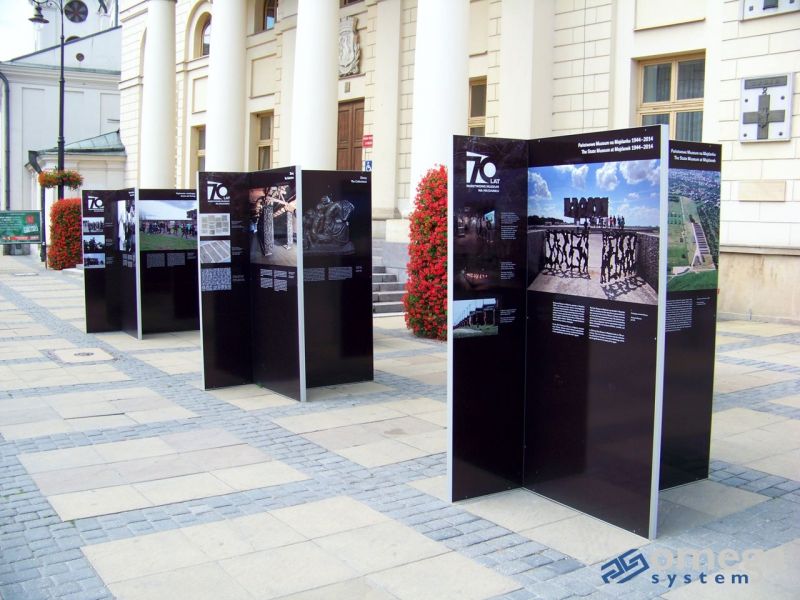

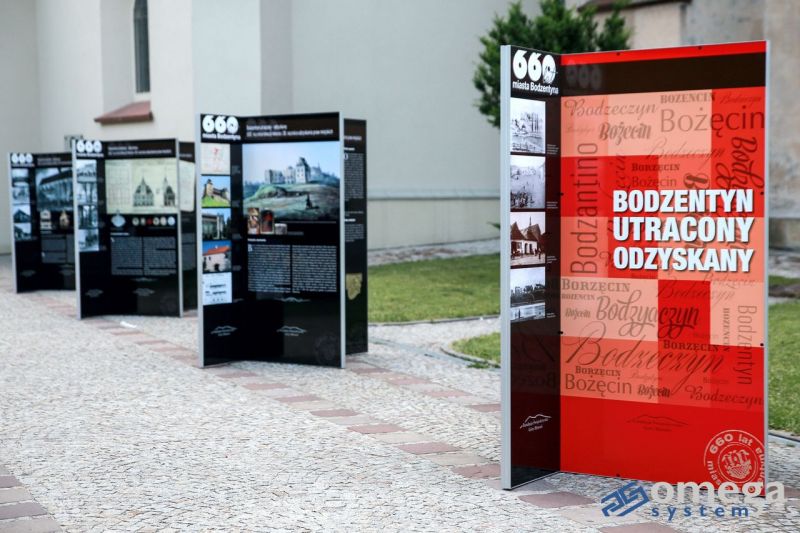

Outdoor Omega QUBE Line exhibition panels
- A lightweight and sturdy system of aluminum frames filled with panels that serve as carriers for presenting graphic, artistic, and advertising materials outdoors.
- The panels are assembled into stable and visually appealing configurations.
- Exhibition structures are discreetly weighted for better stability.
The structure
- Omega QUBE Line exhibition walls designed for outdoor use are made of lightweight aluminum profiles, assembled into stable configurations.
- They are additionally stabilized with heavy bases, which, where possible, are concealed.
- The wall structure is nearly invisible from the front, ensuring that the print content is not disrupted by structural elements of the frames.
- The entire display surface is utilized for presenting content.
- Panels are attached to the frames – typically durable and rigid aluminum composite panels.
- The panels are connected using system connectors to form exhibition frameworks in various layouts.
- Panel sizes are adjusted as needed, but due to their resistance to weather conditions, especially strong winds, these sizes should not be too large.
construction options
Assembly
- The panels are connected using system connectors at various angles.
- The same panels can be disconnected and joined into different configurations.
- The diagrams below present proposals for wall layouts.
Filling
The frames are typically filled with aluminum composite panels. Other materials can also be used, tailored to specific needs.
Bases
The walls are stabilized with heavy concrete bases.
Lighting
- Panels can be illuminated with lamps mounted on the top profile of the walls.
- NEW! Solar lighting
- Requires no access to the electrical grid
- No cables or power supply – simple form,
- An economical and environmentally friendly solution
- Traditional solutions are also used: LED or halogen lighting:
- Light beam – LIGHT BOARD
- Halogen spotlight
- The power supply system is hidden inside the wall
Display method for materials
Omega QUBE Line exhibition walls are primarily designed for displaying printed materials:
- High-quality UV printing directly on the panel – the most popular method
- High-quality print on self-adhesive vinyl placed on the surface, additionally covered with a laminate to protect it from varying weather conditions
Standard dimensions
Omega QUBE Line exhibition walls are available in standard dimensions as well as custom sizes tailored to individual needs within technical feasibility limits.
cat. no | visible dimensionS1 x S2 x H (cm) |
SC/QB/PL/Q1 | 100 x 50 x 200 |

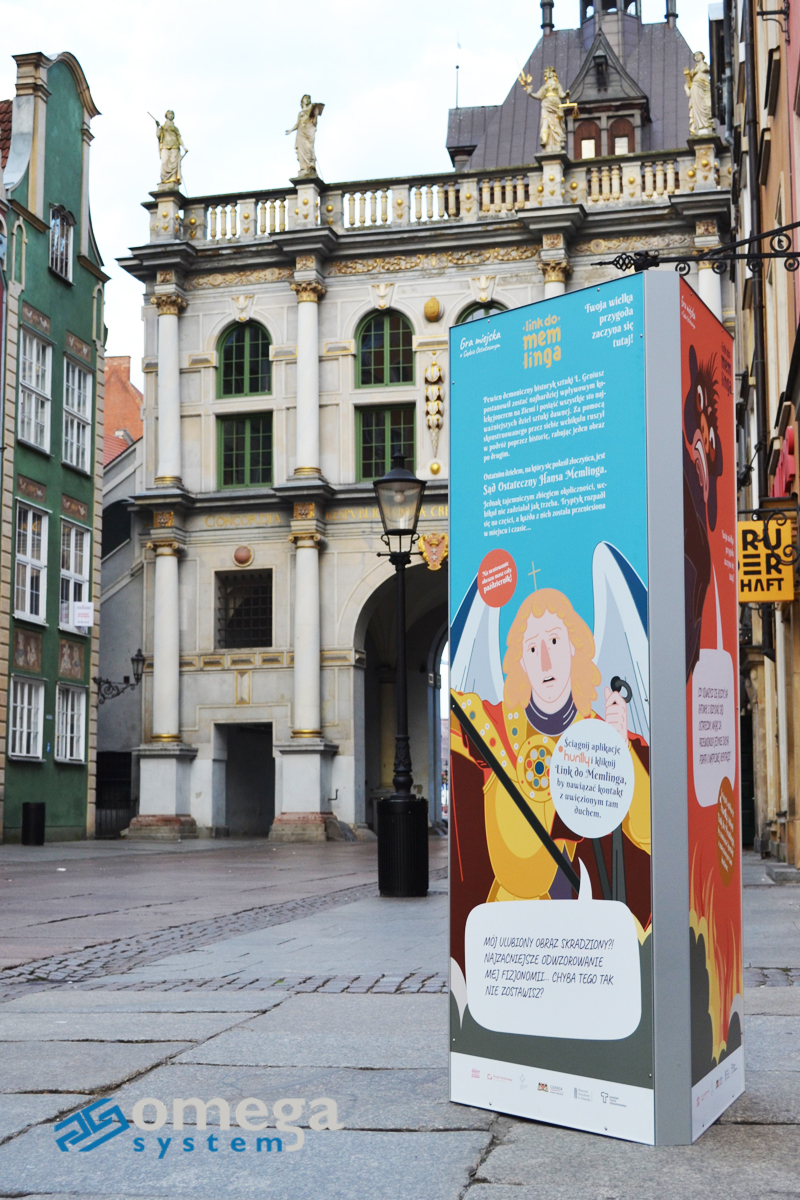

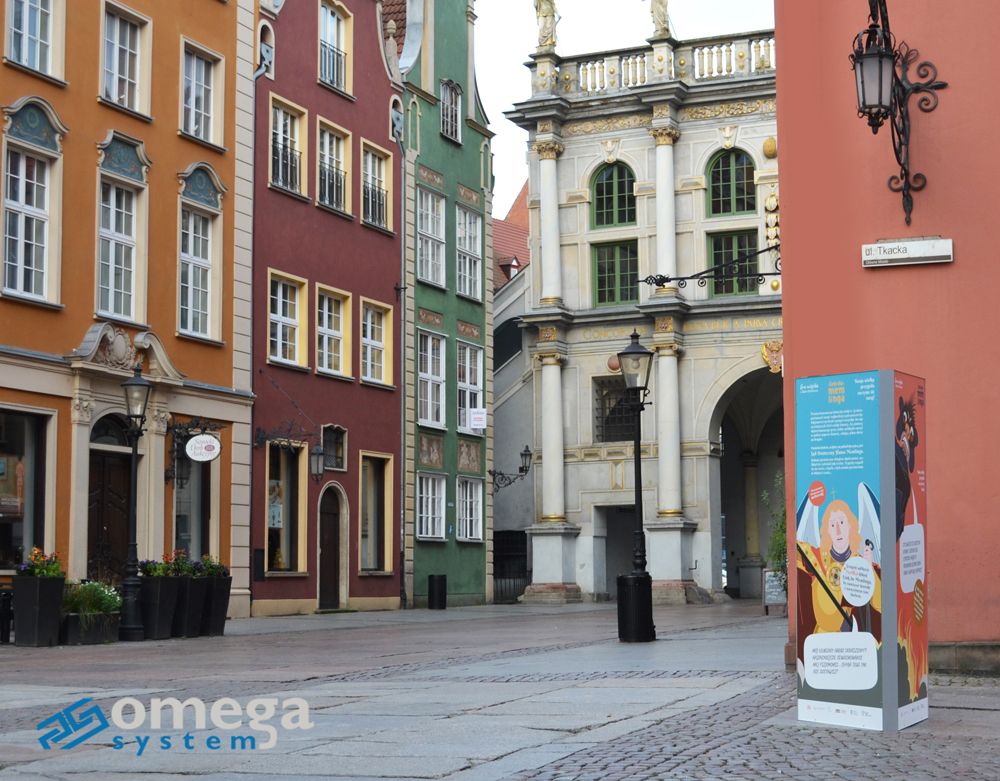

Closed layout – square
cat. no. | visible dimension S x H (cm) |
SC/QB/PL/Q2 | 70 x 200 |
SC/QB/PL/Q2 | 100 x 200 |
SC/QB/PL/Q2 | 125 x 200 |
Closed layout – triangular
cat. no. | visible dimension S x H (cm) |
SC/QB/PL/Q3 | 70 x 200 |
SC/QB/PL/Q3 | 100 x 200 |
SC/QB/PL/Q3 | 125 x 200 |
Lighting
Omega QUBE Line walls can be illuminated in several ways.
- NEW! Solar lighting – does not require access to the electrical grid,
no cables or power supply – simple form, economical and environmentally friendly solution (rys. 1)
- Traditional solutions – panels can be illuminated with lamps mounted on the top profile of the walls.
- LED or halogen lighting is used:
- Light beam – LIGHT BOARD (Fig. 2)
- External halogen lamp (Fig. 3)
- LED or halogen lighting is used:
The best in the field
QUBE aluminum frames work well not only indoors, but also outdoors. The solid aluminum structures are resistant to weather conditions, and the additional load prevents even the strongest wind from overturning the panels placed in the field.
The graphics are displayed on composite plates embedded in frames. The size of the panels can be freely modified – the Omega System company offers not only a set of standard dimensions, but also designs according to customer preferences. The frames can be set individually or create complex structures, which gives countless possibilities of arranging and adapting the exhibitions to various outdoor conditions.
The frame itself in the Omega QUBE Line system is delicate and almost invisible. Thanks to this, what is most important is exposed, i.e. graphics designed by the client or with the help of our specialists from Omega System. Our projects combine quality, durability and aesthetics – each project is carried out in the convention indicated by the client.
An additional advantage of the Omega QUBE Line frames intended for open-air exhibitions is the possibility of installing lighting, which means that the exhibitions can also be viewed after dark. It gives them a unique atmosphere, attracting new visitors
